BONENS La42dwq-22 22mm 1k Ohm Governor Inverter Converter Resistance Variable Frequency Converter Speed Drive Potentiome

Name: BONENS La42dwq22 22mm 1k Ohm Governor Inverter Converter Resistance Variable Frequency Converter Speed Drive Potentiome
Brand: BONENS
Price: 1 USD

Quality BONENS La42dwq-22 22mm 1k Ohm Governor Inverter Converter Resistance Variable Frequency Converter Speed Drive Potentiome for sale

Brand Name : BONENS

Model Number : LA42DWQ-22

Place of Origin : Chengdu, Sichuan

Contact Now

Product Description

LA42DWQ-22 potentiometer

The LA42DWQ-22 potentiometer is an electronic component primarily used for adjusting the resistance value in a circuit, thereby controlling voltage, current, or signals. Below is a detailed description of this potentiometer:
Basic Information
Model: LA42DWQ-22
Type: Single-turn potentiometer (although some descriptions may mention it as a multi-turn potentiometer, we will focus on the single-turn version based on the provided information)
Application: Precision adjustment, commonly found in electronic devices such as frequency converters, speed controllers,sensors, etc.
Mounting Hole Diameter: 22mm (suitable for installation holes of corresponding size)

BONENS La42dwq-22 22mm 1k Ohm Governor Inverter Converter Resistance Variable Frequency Converter Speed Drive Potentiome

Resistance value decreasing

The resistance value of the common terminal + Z1 terminal rotates clockwise, the black pen terminal is the common terminal, and
the red pen terminal is the Z1 terminal

Resistance value increasing

The resistance value of the common terminal + Z2 terminal rotates clockwise, the red pen terminal is the common terminal, and the black pen terminal is the Z2 terminal

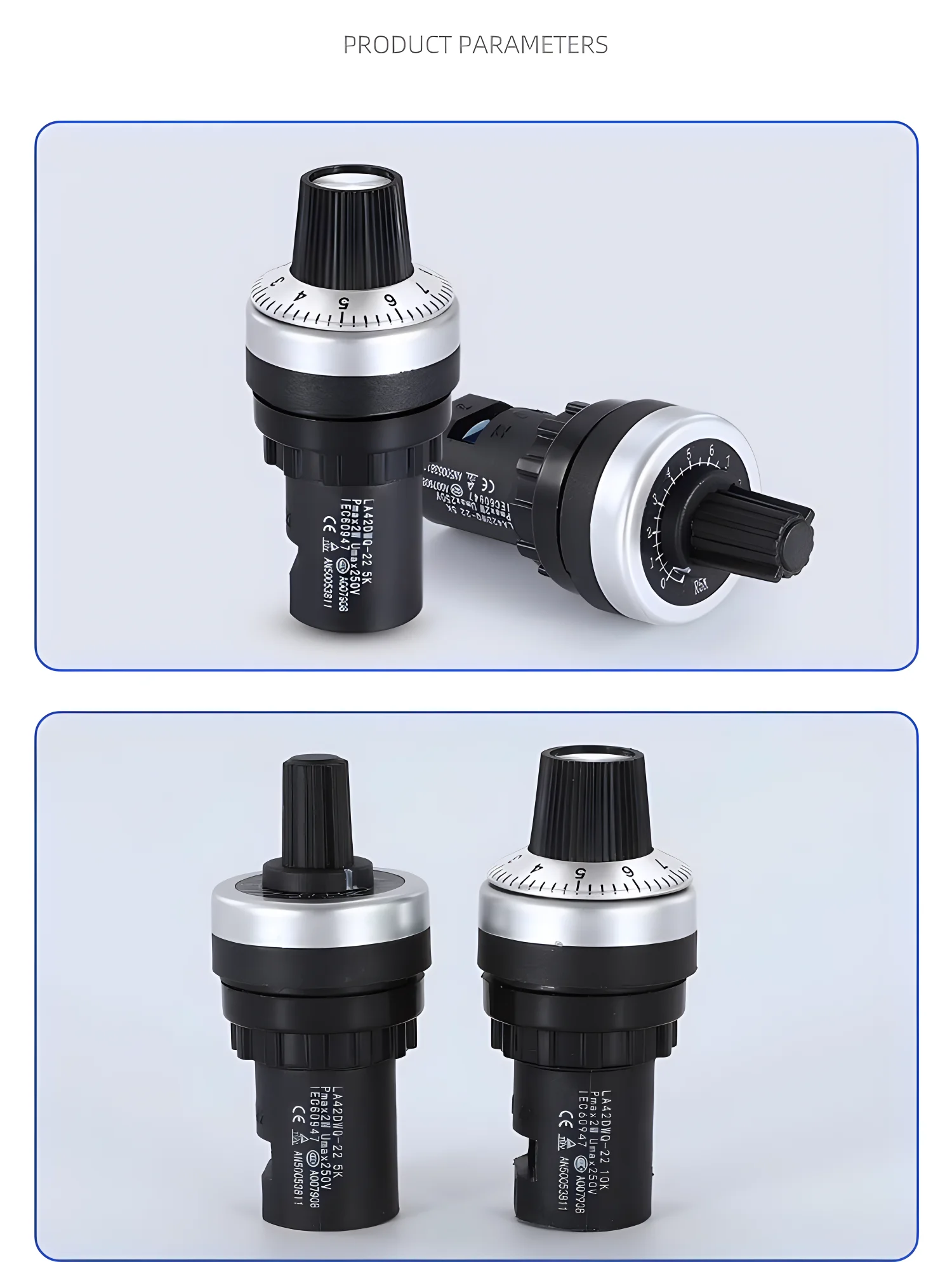

Product Paramenters

Specification

Product name	Speed regulating potentiometer
Model	LA42DWQ-22
Installation aperture	22mm
Resistance specification	1k 2k 5k10k (resistance can be customized)
Color	Black
Packaging quantity:	10 pieces/box

Performance Characteristics
1. Fine Adjustment: By rotating the adjustment knob, the resistance value can be precisely adjusted, enabling fine-tuning functionality.
2. Rotary Adjustment: Features a rotary resistance adjustment method for convenient operation.
Usage Precautions
1. Torque Control: Avoid applying excessive torque to the potentiometer to prevent damage to internal mechanical structures.
2. Rotation Angle: The rotating handle typically cannot rotate 360°, and attention should be paid to the rotation angle limit
during use.

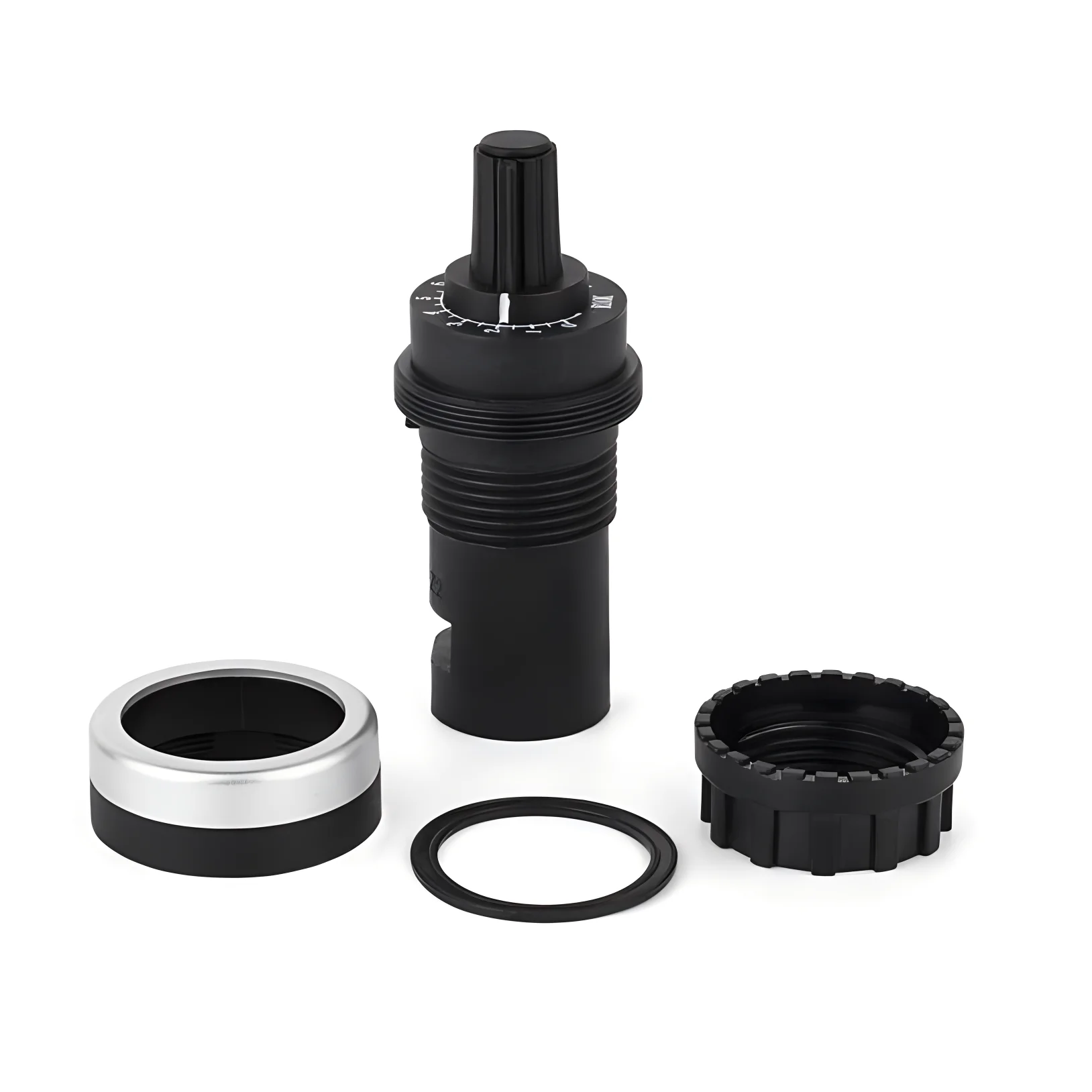

3. Installation Method: During installation, align the positioning block with the mounting hole notch, insert the knob into the mounting hole, and tighten the screw thread.
Availability and Purchase
The LA42DWQ-22 potentiometer is produced by multiple manufacturers and is widely available. It can be searched for and purchased on e-commerce platforms (such as JD.com, Alibaba, etc.), or you can contact relevant manufacturers or distributors for procurement.

Summary

The LA42DWQ-22 potentiometer is a stable and precise electronic component widely used in various electronic devices requiring resistance adjustment. When selecting and using it, it is necessary to choose the appropriate specifications and models based on specific application scenarios and requirements, and follow relevant usage precautions to ensure its normal operation.

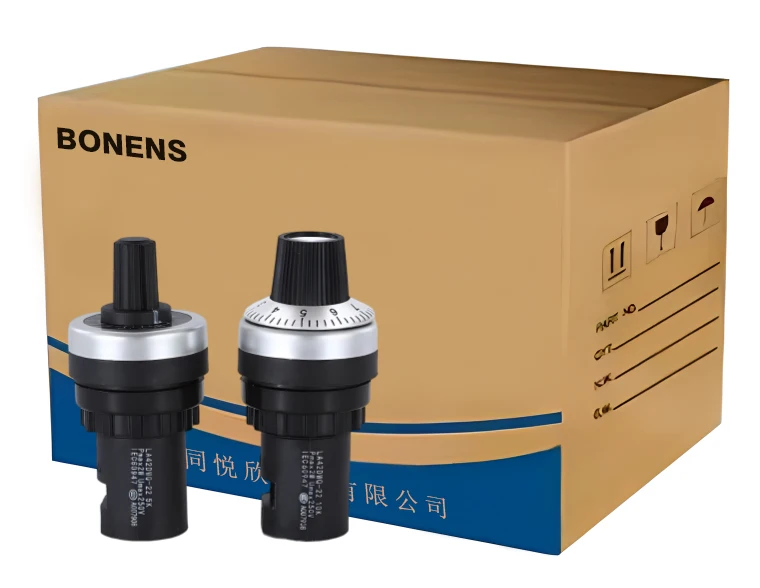

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

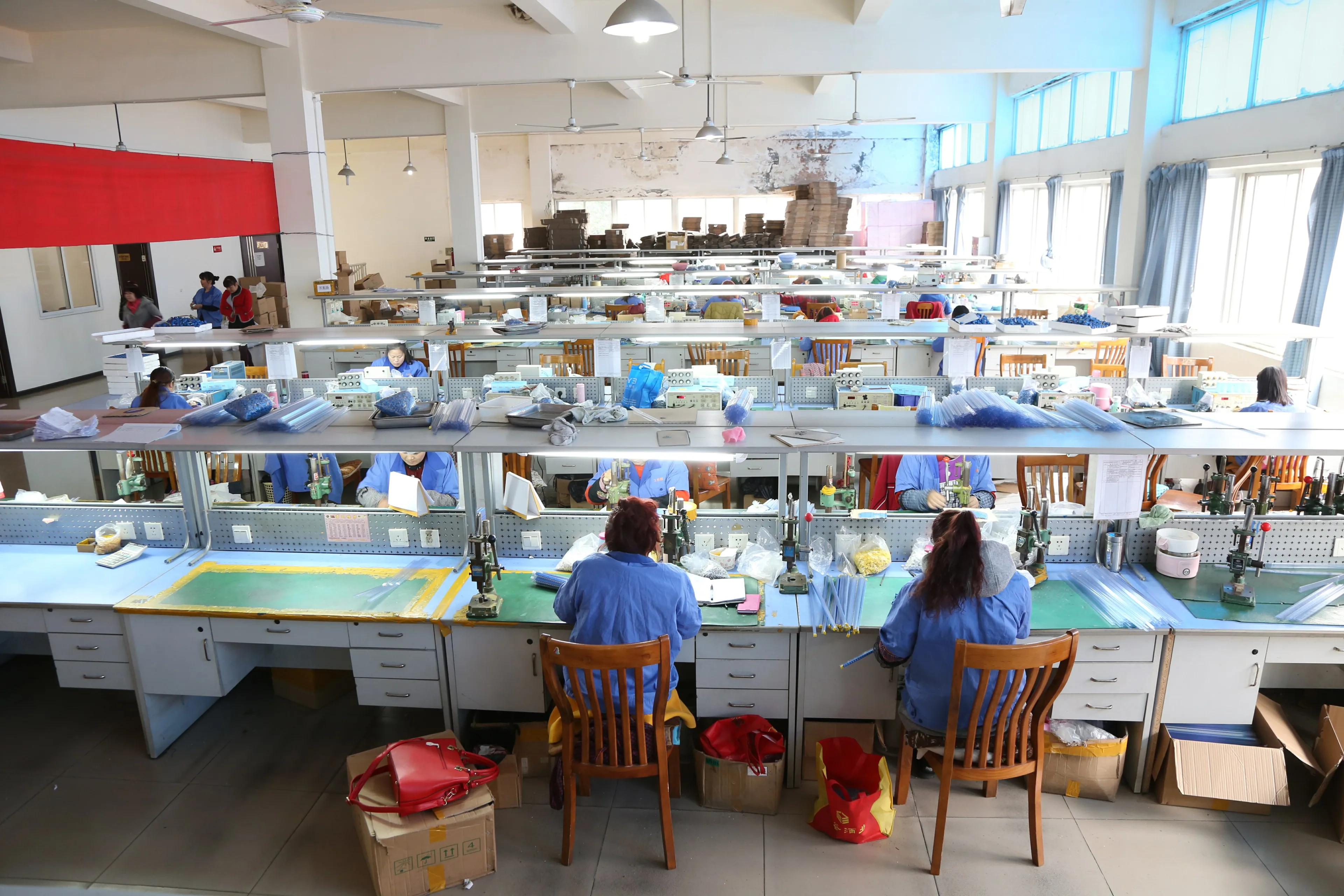

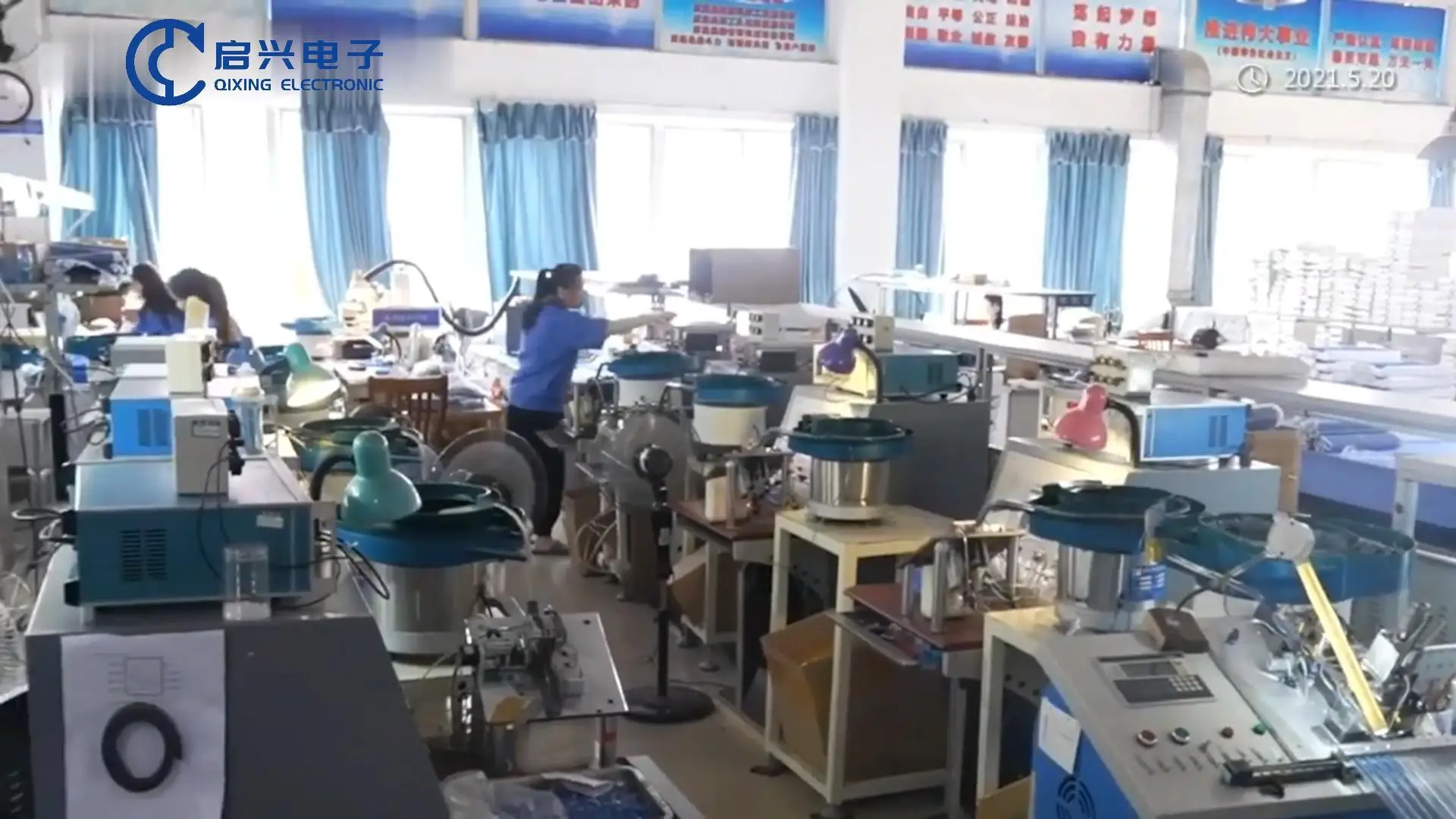

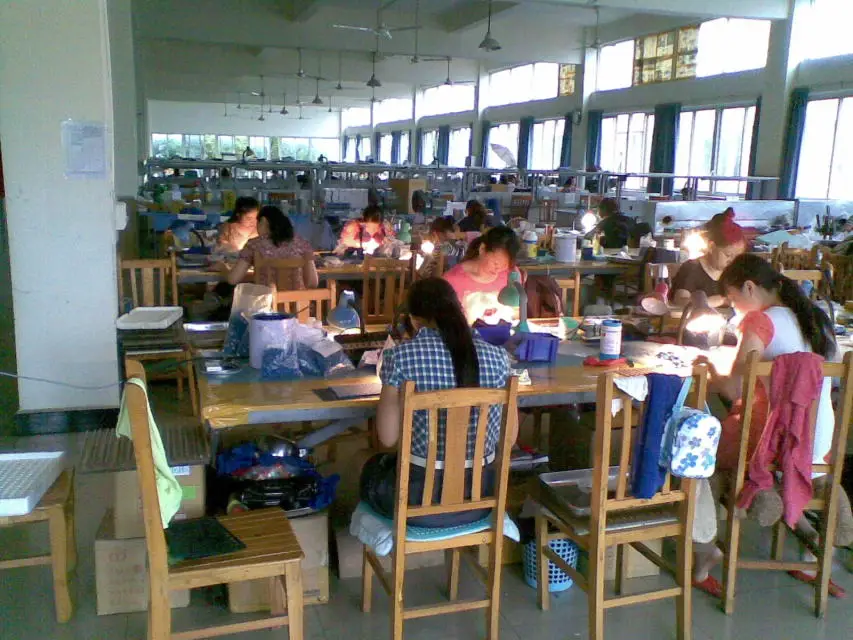

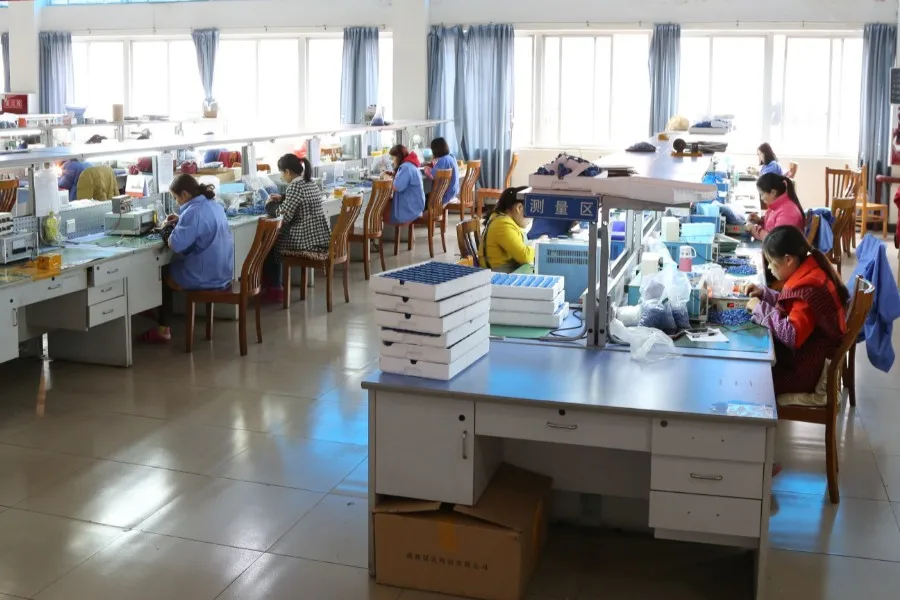

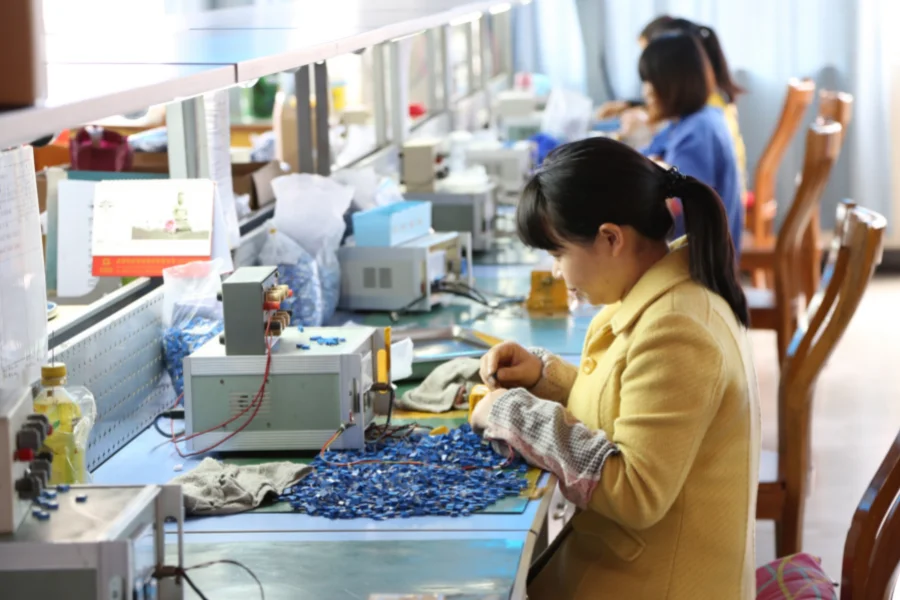

Our factory is a specialized enterprise engaging in trimming potentiometers series,wirewound potentiometer series,
wirewound resistor series and High power Rf resistors.It is a high-tech enterprise appraised by state.
Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.
We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise and faith!Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.

FAQ

(1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
(2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.
(3) What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
(4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
(5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
