Emi Filters For Inverter 20a 30a Emi Filter 10a 220v IEC Socket Power Filter

PRODUCT NAME

DAI1 series IEC type socket -type anti -interference for electrical equipment EMI power filter 1A 3A 6A 10A

PRODUCT INTRODUCTION

The DAI1 series EMI power cord noise filter uses high -quality manganese zinc iron oxygen magnetic ring and capacitor. The process quality is first -class and excellent performance. This series of products has a standard IEC socket input interface, modular design, small volume, low price, and solving 1MHz-30MHz high-frequency interference performance. Has a good co -mode and differential interference inhibitory. The product design is simple, but the performance is good, the connection is convenient, easy to use, and the price is low.

PRODUCT FEATURES

Single -phase AC 220VAC Power Noise Noise Filter (DC Lifting)
Basic type, price discount, low cost
Standard 6.3*0.8 interface output, convenient and fast
It has a good inhibitory effect on the interference of common models and differential models

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

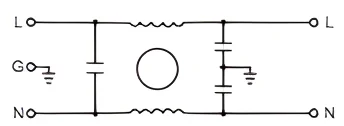

Model	Rated current	Leakage current	Product internal circuit diagram	Safety certification	remark
DAI1-1A	1A	<0.5mA		CUL,CE ROHS	Support parameter customization
DAI1-3A	3A	<0.5mA
DAI1-6A	6A	<0.5mA
DAI1-10A	10A	<0.5mA

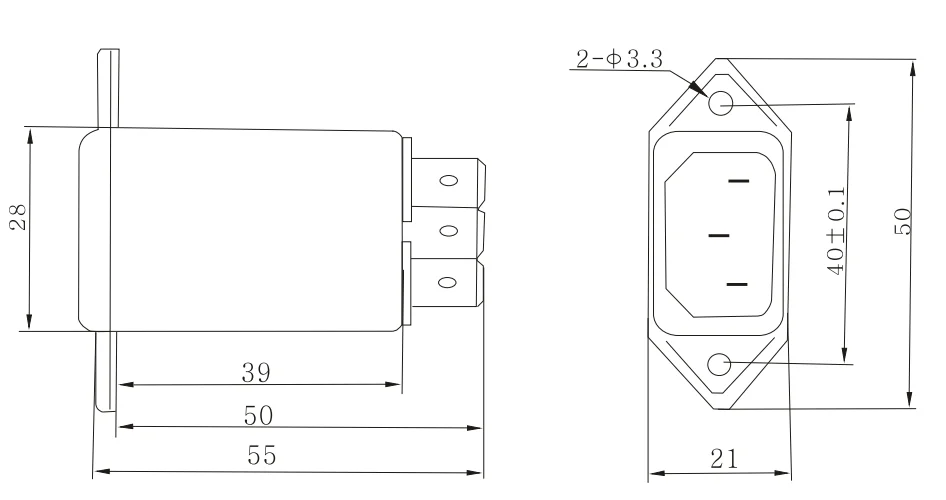

PRODUCT SIZE

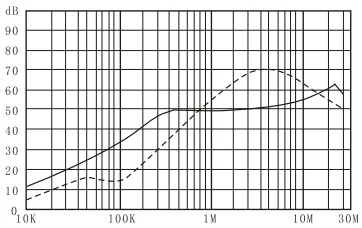

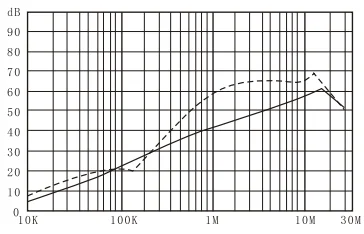

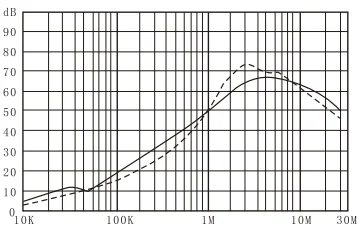

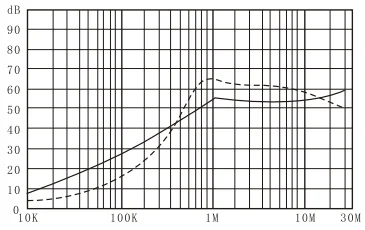

INSERTION LOSS

————(Common Mode) ----------(Differential Mode)

DAI1-1A DAI1-3A

DAI1-6A DAI1-10A

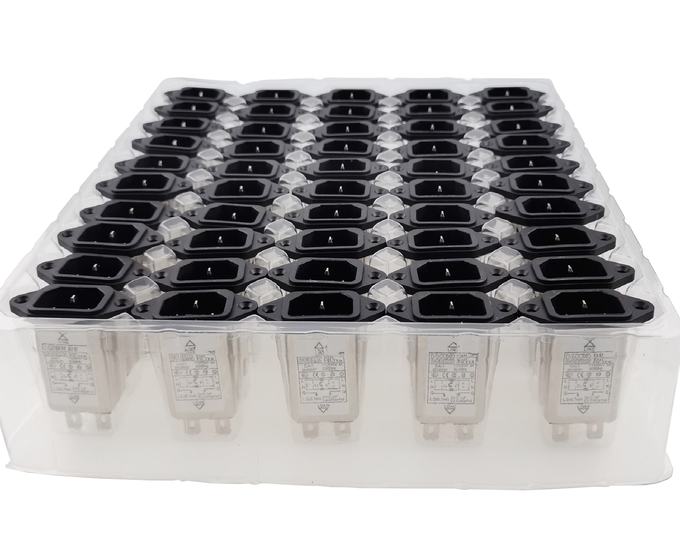

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

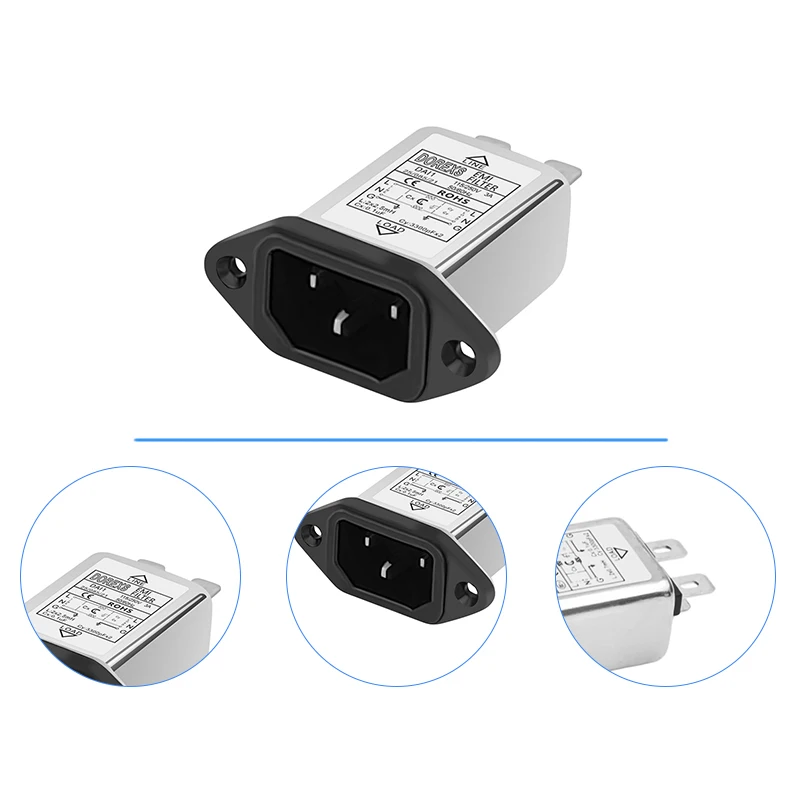

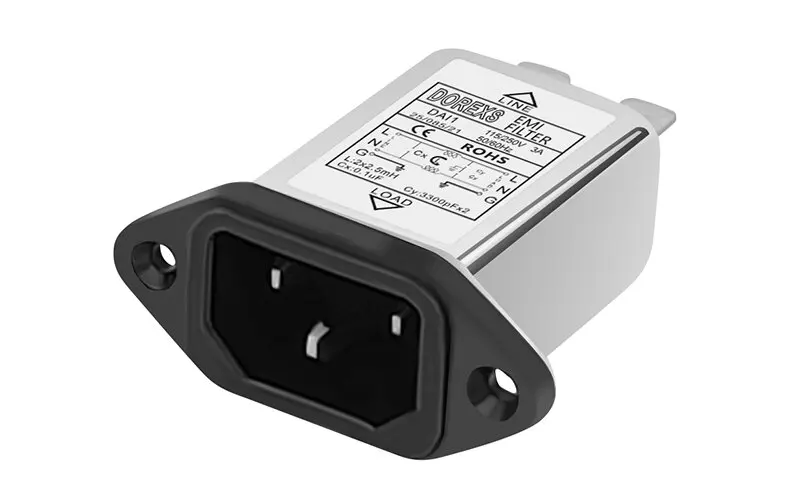

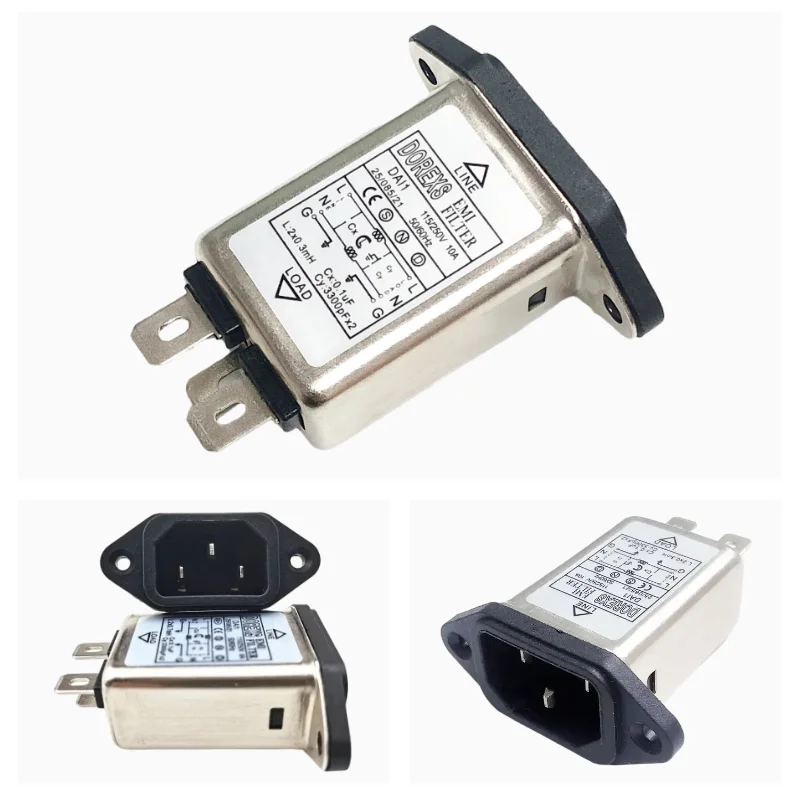

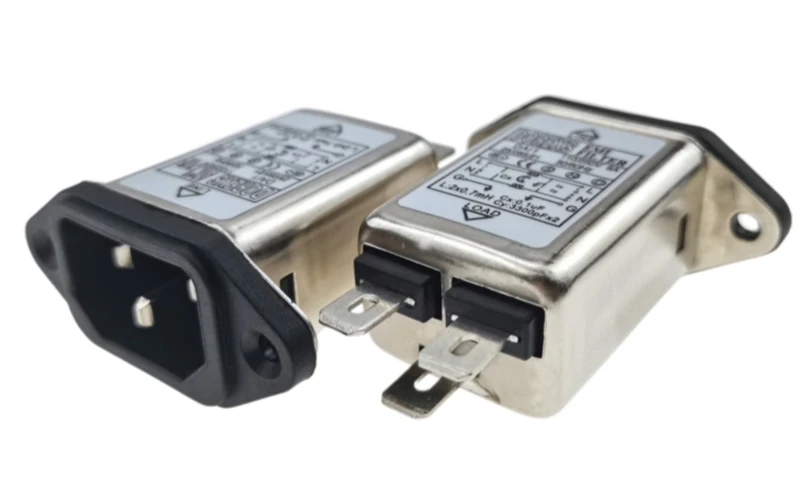

PRODUCT PHOTOS

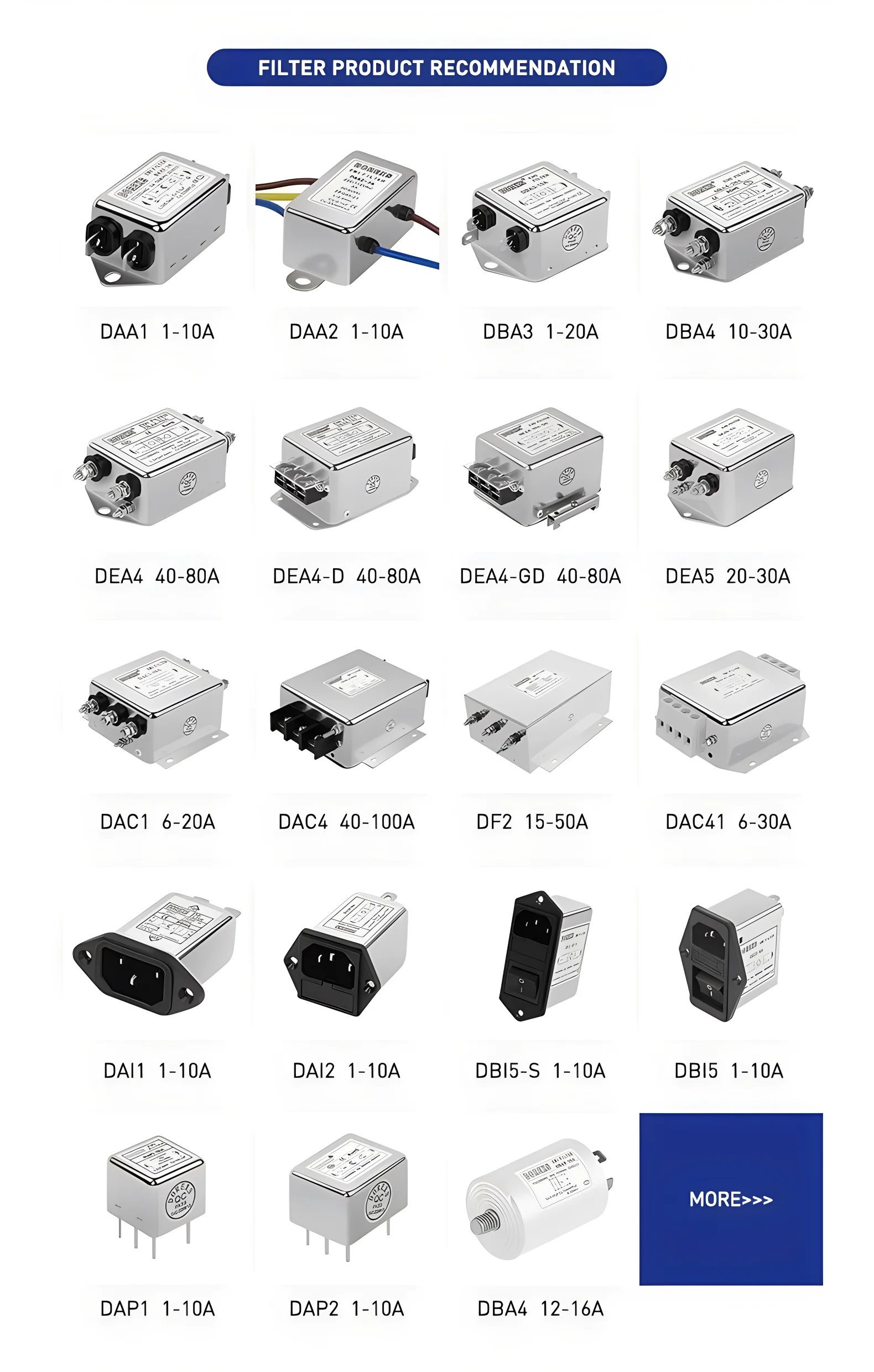

PRODUCT CATALOG
